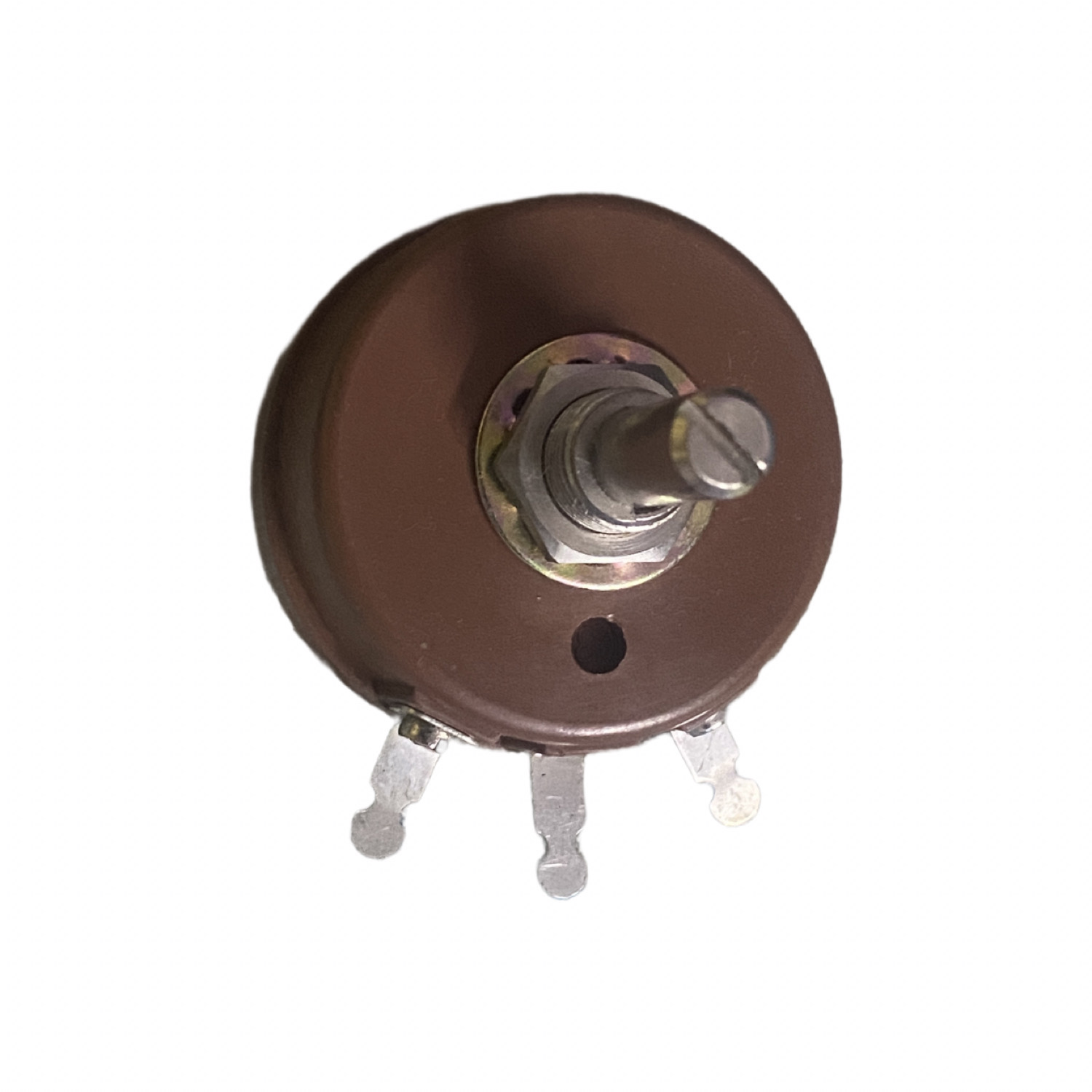

1K OHM 3W Wire Wound Potentiometer R.W-3

Description

Model Name/Number : R-W-3

Brand : Pankaj

Resistance Tolerance : +10% Standard,+5% Special

Power Rating : 3 Watt at 40 Degree Celsius

Angle of Rotation : 265 Degree + 15 Degree

Maximum Working Voltage : 500 VDC

Voltage Proof : 1500 VAC for 1 Min. At Sea level

TCR of Resistance Wire : 150 ppm/ Degree Celsius

Rotational Life Expectancy : 20,000 Cycles at 15 RPM

Temperature Range : 0 to 70 Degree Celsius

Housing Diameter : 41mm

Housing Length : 20mm

Shaft Diameter : 6.3mm

Shaft Length : 19mm or 25mm Standard

Bush Mounting : 3/38 Inch X 32 TPI, 10mm Length

Mechanical Angle of Rot : 285 Degree + 15 Degree
